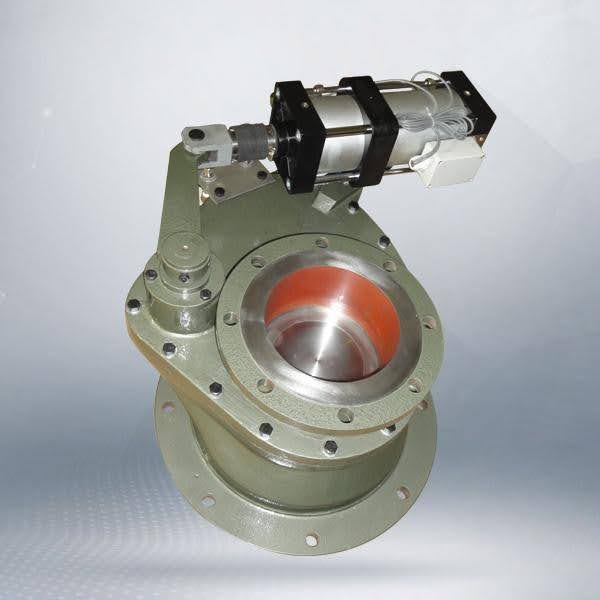

This CWF valve uses a disc for sealing and the sealing surfaces are made from wear-resistant alloy or ceramic. The seal is 100% airtight and the valve achieves a long service life, particularly in abrasive applications. Consequently, overall system reliability is increased dramatically.
Features and Benefits
During manufacture of the valve, each disc and sealing ring pair is lapped until a 100% airtight seal is obtained. Even fine particles find it difficult to penetrate the lapped mating surfaces. A compression spring is placed between the two discs and ensures good contact with the mating sealing rings.
When the valve is actuated, the double-disc rotates and laps automatically against the metal sealing rings. Hence, a 100% airtight seal is maintained, even as the discs and sealing rings wear over time. The rotating action of the double-disc ensures even wear of each mating surface.
After manufacture, each valve is air-pressure-tested and 100% airtight sealing is confirmed and certified.
A minimum pressure of only 0.4MPa-g is required to operate the valve.
All these features allow the valve to achieve long and reliable service life and provide a high reliability for your systems.
Applications
- Blow tank inlet, outlet and venting
- Pipe isolation
- Dust, powder and/or granular products in coal- fired power plants, smelters, iron & steel plants, pharmaceutical, chemical industries
Performance Characteristics
- Operating pressure = 0 to 1000 kPa-g
- Body test pressure = 1500 kPa-g
- Operating temperature ≤ 300o C or ≤ 450o C
- Leakage test pressure = 1100 kPa-g
- Actuator = Double-acting pneumatic cylinder
